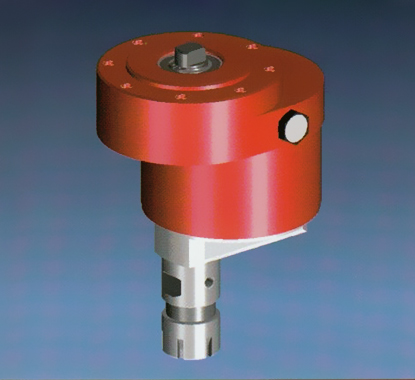

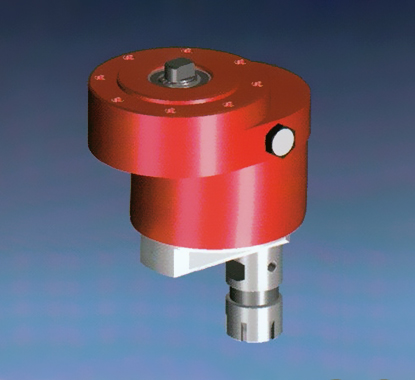

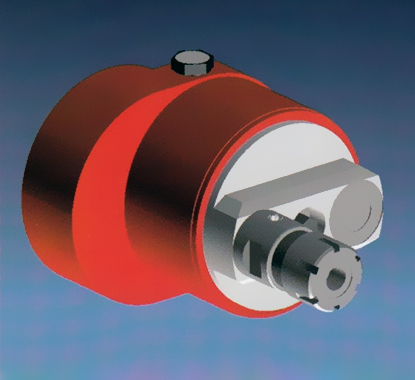

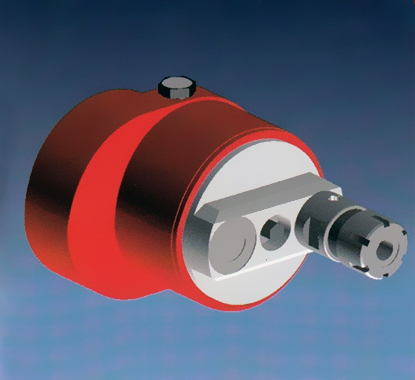

Head with a single spindle and adjustable working distance between centre

Type Collets Capacity Min/max centre distances Max dimensions Speed Weight
Code Code Clamping range Drilling Tapping R min. S max. A B C D E F G H L M N O P RPM Kg
TGR1 ER 20 1 13 M12 0 51 65,5 78 10 7 7 143,5 115,5 90 62 90 17 78 2000 1,5
